CNC Machining Services: Multi-Setup, 3+2 and 5-Axis Accuracy

CNC Machining Services often involve more than simply programming a toolpath and cutting material. For complex components, the number of setups, datum transfers, tool orientations and machining directions can directly affect dimensional consistency and geometric accuracy. Reducing unnecessary setups and selecting an appropriate 3+2 or simultaneous 5-axis strategy can help control accumulated positioning errors, improve feature accessibility and simplify the production of complex parts.

Why Multi-Setup CNC Machining Affects Accuracy

In CNC Machining Services, a setup refers to a defined workholding and positioning condition used to machine a part. A simple component may be completed in one setup, while a complex component may require several orientations to access different surfaces.

Every additional setup introduces another opportunity for positioning variation. When a component is removed, rotated and clamped again, the relationship between the original machining datum and the machine coordinate system must be re-established.

This does not mean that multiple setups are inherently inaccurate. Proper fixture design, datum selection, probing and inspection can maintain the required accuracy. The engineering issue is that each additional setup adds another source of variation that must be controlled.

pemVerify all parameters against current test reports and applicable standards before use in specifications.emp

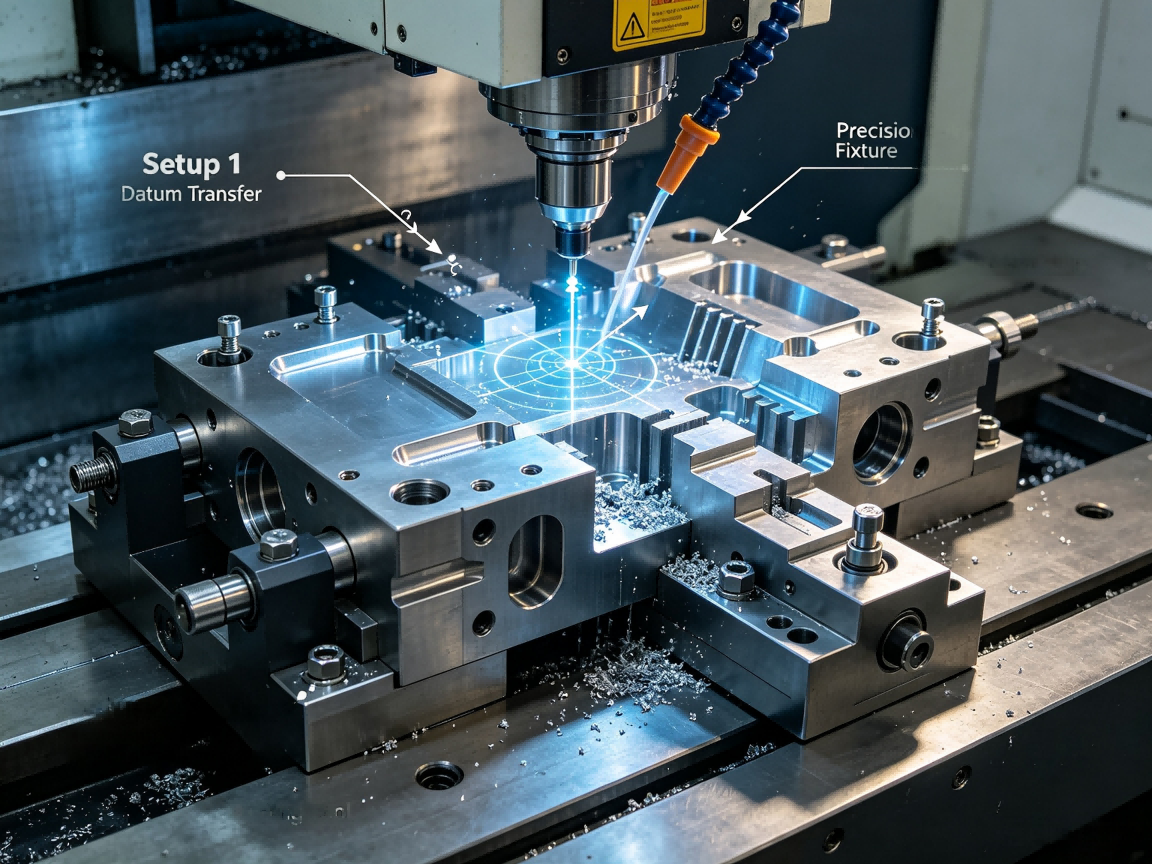

How Datum Transfer Creates Cumulative Positioning Error

A CNC machine operates using coordinate systems that define where the cutting tool should move relative to the workpiece. When the part is repositioned, the machining process must establish a new relationship between the physical workpiece and the programmed coordinate system.

For example, imagine a component with a primary mounting surface and a series of holes on several sides. The first setup may establish the main reference surface. After the component is rotated, the second setup must reproduce the intended relationship between that reference and the newly accessible surface.

If the repositioning introduces a small angular or positional deviation, features machined in the second setup may no longer have exactly the same relationship to features created in the first setup.

The effect becomes more noticeable when several setups are chained together. Setup 2 references a condition established from Setup 1, while Setup 3 may depend on information transferred from Setup 2. The resulting variation is not necessarily equal to a simple arithmetic addition, because the actual error depends on fixture repeatability, probing strategy, machine accuracy, part geometry and the selected datum scheme.

Typical Features Sensitive to Datum Shift

• Multi-face bolt-hole patterns

• Cross-drilled holes

• Coaxial bores

• Perpendicular mounting surfaces

• Intersecting channels

• Precision shaft seats

• Bearing locations

• Complex mating surfaces

For these features, reducing the number of physical repositioning operations can simplify process control.

When a Single Setup Is Not Enough

Although minimizing setups can reduce potential positioning variation, a single setup is not always the best solution. Tool access, machine travel, workholding interference and component geometry may make certain features impossible or impractical to machine from one orientation.

A deep pocket may require a different tool direction. A side hole may be inaccessible from the top. An undercut may require an angled tool orientation. A complex housing may contain several surfaces that cannot be reached without rotating the workpiece.

In these situations, the engineering objective is not simply to eliminate setups. Instead, the process should use the fewest practical setups while maintaining tool accessibility, workholding stability and required geometric relationships.

pemVerify all parameters against current test reports and applicable standards before use in specifications.emp

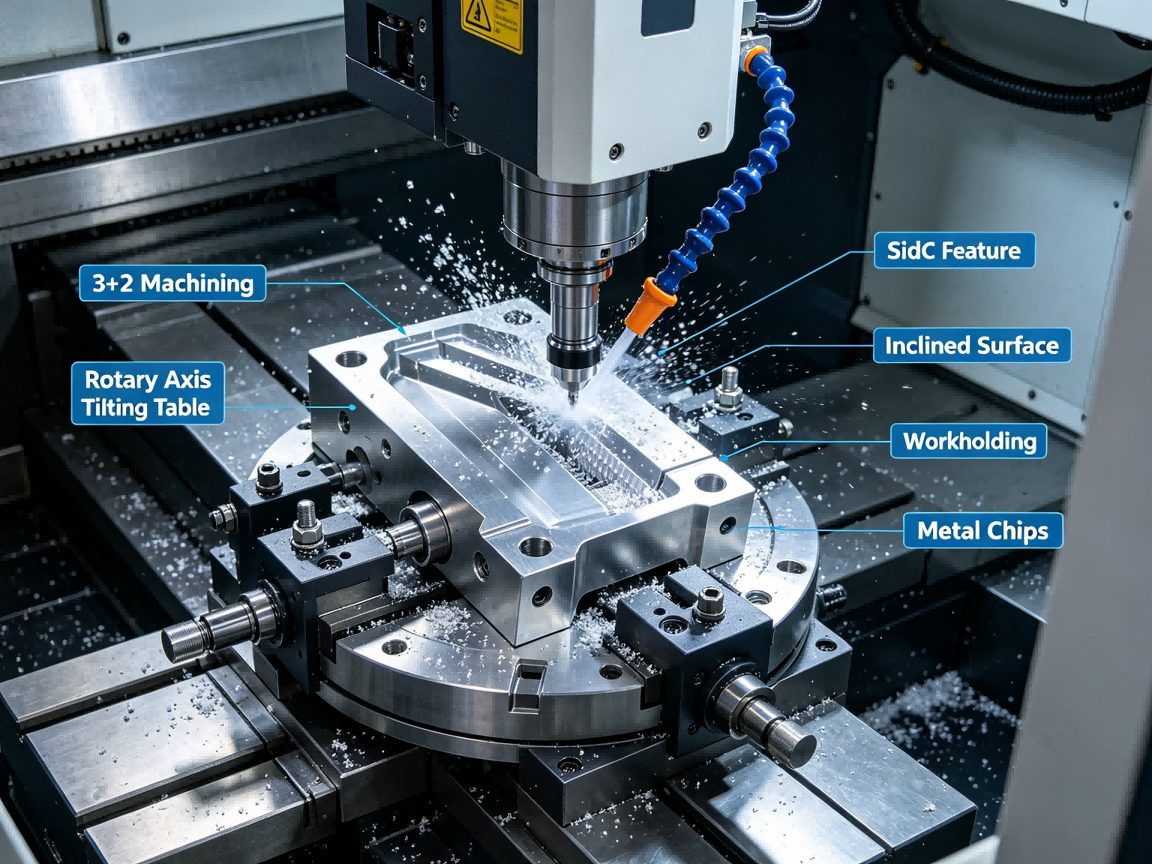

What Is 3+2 CNC Machining?

3+2 CNC machining uses three linear machine axes together with two rotary axes to position the cutting tool and workpiece at a selected angle. Once the desired orientation is established, the cutting operation is generally performed using three linear axes.

This approach is sometimes described as indexed 5-axis machining. The rotary axes position the workpiece or tool, and the machine then performs conventional three-axis cutting from the selected orientation.

The major advantage is that multiple surfaces can often be accessed without physically removing the part from the fixture. This can reduce manual repositioning and help maintain a common machining reference.

Advantages of 3+2 Machining

• Improved access to angled surfaces

• Reduced physical workpiece repositioning

• Better access to deep pockets and side features

• Potential reduction in fixture changes

• Improved consistency between features machined from different orientations

• Ability to use shorter tools in some applications

3+2 machining can be particularly useful when a component contains several fixed-angle surfaces but does not require continuous tool-axis movement during cutting.

3+2 Machining vs Simultaneous 5-Axis Machining

The terms 3+2 and 5-axis machining are sometimes used interchangeably in general discussions, but they describe different machining strategies.

In 3+2 machining, the rotary axes position the cutting orientation and then remain fixed during the primary cutting operation. In simultaneous 5-axis machining, the linear and rotary axes can move together during cutting, continuously changing the tool orientation relative to the workpiece.

pemVerify all parameters against current test reports and applicable standards before use in specifications.emp

The appropriate strategy depends on part geometry rather than simply choosing the machine with the highest axis count. A component with several fixed angled surfaces may be efficiently produced using 3+2 machining, while a turbine-like surface or continuously curved geometry may require simultaneous 5-axis movement.

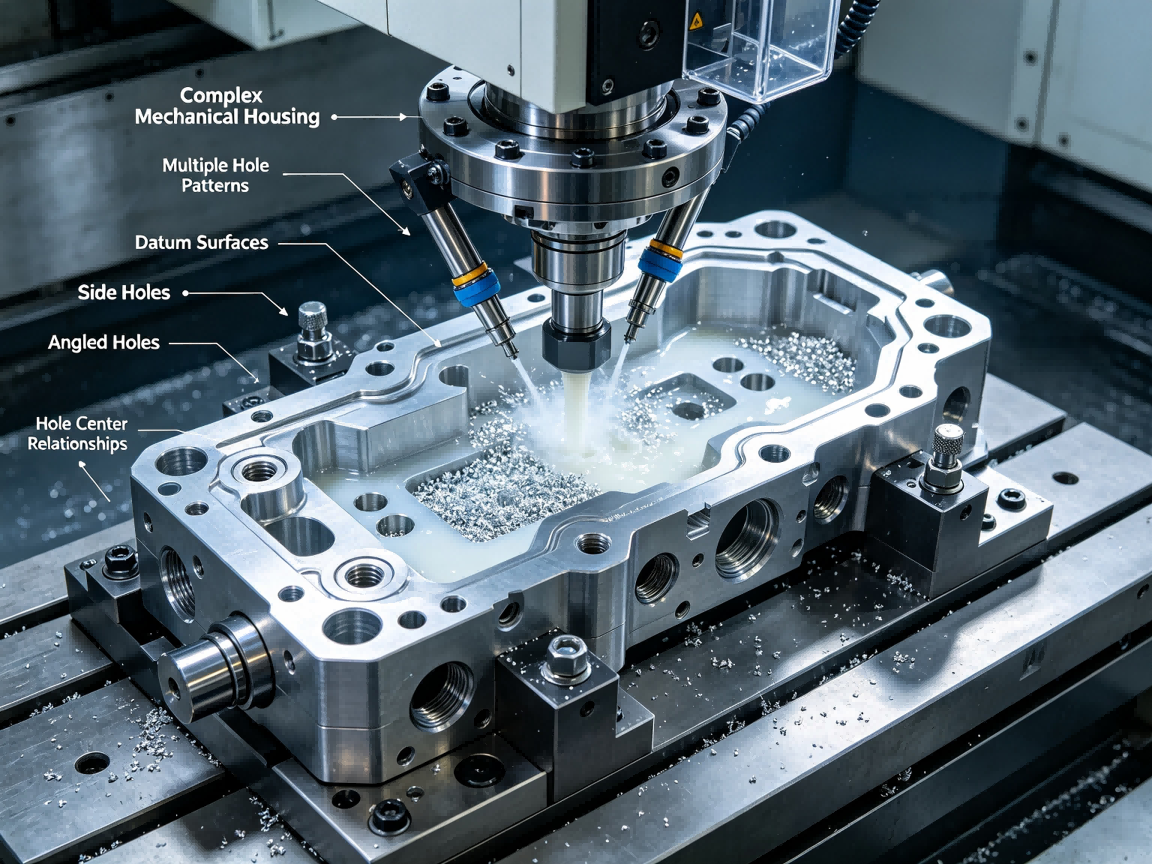

How Multi-Axis Machining Improves Hole Pattern Consistency

Hole patterns are particularly sensitive to setup changes because their functional performance depends not only on hole diameter but also on the relationship between hole centers, reference surfaces and mating components.

Consider a component containing mounting holes on several faces. If each face is machined in a separate setup, every repositioning operation introduces another opportunity for alignment variation.

Using a suitable multi-axis process can allow several hole groups to be machined while maintaining a common relationship to the primary workholding condition.

This can be important for:

• Flange assemblies

• Gearbox housings

• Automation machine frames

• Hydraulic and pneumatic components

• Construction machinery components

• Textile and packaging machinery components

• Automotive mechanical components

However, multi-axis machining does not automatically guarantee perfect hole positioning. The machine, fixture, probing system, cutting tools, thermal condition and inspection process still need to be controlled.

Tool Orientation and Cutting Conditions

Changing the tool orientation can affect more than accessibility. It can also influence tool rigidity, cutting force, chip evacuation, surface finish and tool life.

A long tool used vertically in a deep cavity may experience significant deflection. If a suitable angled orientation allows a shorter tool to reach the same surface, tool rigidity can improve.

Tool orientation should therefore be considered together with feature depth, internal corner radius, material, cutting parameters and required surface quality.

pemVerify all parameters against current test reports and applicable standards before use in specifications.emp

Workholding Strategy for Multi-Axis CNC Machining

Multi-axis machining requires careful workholding because the fixture must hold the component securely while providing sufficient tool clearance.

A conventional fixture may obstruct one or more surfaces. A multi-axis fixture must therefore balance clamping force, rigidity, accessibility and reference repeatability.

Excessive clamping force can also become a problem for thin-wall components. The part may deform during machining and partially recover after unclamping. This is especially important for aluminum housings, thin plates and components containing large pockets.

A good workholding strategy should consider:

• Primary, secondary and tertiary locating surfaces

• Clamping force and clamping position

• Tool clearance

• Rotary-axis clearance

• Part rigidity

• Datum accessibility

• Probe accessibility

• Chip evacuation

• Repeatable fixture positioning

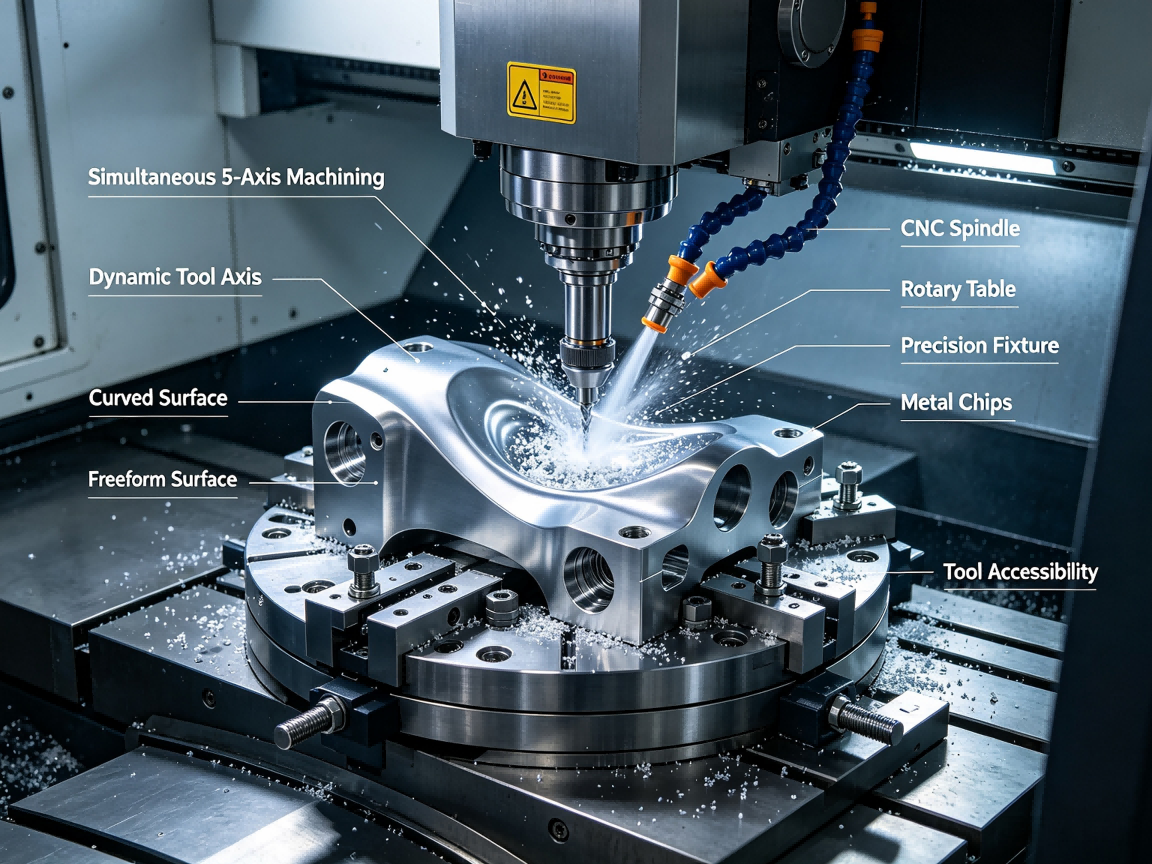

3+2 and 5-Axis Machining for Complex Surfaces

Complex surfaces create a different type of machining challenge. A flat surface can often be machined with a fixed tool orientation, while a curved surface may require the cutting tool to approach the workpiece from changing directions.

For relatively simple angled surfaces, 3+2 machining may provide sufficient access. For continuously changing surface normals, simultaneous 5-axis machining can provide more control over tool orientation.

Tool-axis control can influence:

• Surface scallop pattern

• Cutting engagement

• Tool accessibility

• Tool deflection

• Machining time

• Surface quality

The Cam strategy should be selected according to the geometry, required surface finish and available cutting tools rather than based solely on the number of machine axes.

How Setup Reduction Can Affect Production Efficiency

Every setup involves activities such as fixture preparation, part loading, alignment, probing, tool verification and first-piece checking. In low-volume production, setup time can represent a significant part of the total manufacturing cycle.

Reducing unnecessary setups can therefore affect both manufacturing efficiency and consistency.

pemVerify all parameters against current test reports and applicable standards before use in specifications.emp

Common Failure Modes in Multi-Setup CNC Machining

Feature Alignment Is Correct in One Setup but Incorrect Across Setups

This can occur when the datum relationship between setups is not adequately controlled. The individual features may meet their local dimensional requirements while their relationship to features produced in another setup is outside the engineering requirement.

Hole Diameter Is Correct but Hole Pattern Is Misaligned

Hole diameter is a size characteristic, while hole-center location is a positional characteristic. A correct diameter does not prove that the hole is correctly located relative to the required datum system.

Deep Features Require Excessively Long Tools

If the selected machining orientation creates poor tool accessibility, the process may require long-reach tools. Increased tool overhang can increase deflection and vibration.

Fixture Interference Limits Machining Access

A fixture that provides excellent clamping but blocks the cutting tool can force additional setups or inefficient toolpaths. Fixture design should therefore be considered during DFM rather than after the machining strategy is finalized.

Complex 5-Axis Programming Creates Unnecessary Risk

Using simultaneous 5-axis machining for every complex-looking part is not automatically beneficial. More sophisticated toolpath control can increase programming and verification requirements. If indexed 3+2 machining provides adequate access and process control, it may be a more practical strategy.

Engineering Checklist for Multi-Setup and Multi-Axis CNC Machining

• Identify the primary functional datum before process planning.

• Determine which surfaces and features can be completed in one setup.

• Identify features that require additional tool orientations.

• Evaluate whether 3+2 machining can replace physical repositioning.

• Determine whether simultaneous 5-axis movement is actually required.

• Check fixture clearance before finalizing the machining strategy.

• Evaluate tool length and accessibility for deep features.

• Consider datum transfer between every setup.

• Review hole patterns and feature relationships across multiple faces.

• Define inspection datums consistently with the engineering drawing.

• Verify complex toolpaths through simulation before production.

• Inspect critical features after machining.

How to Evaluate CNC Machining Services Capability

When evaluating a CNC machining supplier, customers should look beyond the advertised number of machine axes. The more useful question is whether the manufacturer can translate part geometry and engineering requirements into a stable machining process.

For complex parts, review the supplier's ability to perform DFM analysis, fixture planning, multi-axis programming, probing, dimensional inspection and process verification. A supplier with an integrated production process can also help identify whether a geometry change could reduce setups or simplify machining.

For Dongguan city Jifan Precision Machinery Co., Ltd, CNC machining services are supported by in-house production, automated Machining Capabilities, prototype development and customized manufacturing. Project-specific machining strategies should be confirmed against the supplied drawings, materials, tolerances and inspection requirements.

FAQ About Multi-Setup CNC Machining Services

Does fewer CNC setups always mean higher accuracy?

Not necessarily. Fewer setups can reduce datum-transfer opportunities, but accuracy also depends on machine condition, fixture rigidity, probing, tooling, thermal control, programming and inspection. The machining strategy should be selected according to the complete part geometry.

What is the main difference between 3+2 and 5-axis machining?

3+2 machining normally uses rotary axes to establish a fixed cutting orientation before three-axis cutting. Simultaneous 5-axis machining can move the rotary and linear axes together during cutting, allowing continuous tool-axis control.

When is 3+2 machining useful?

3+2 machining is useful when a component contains multiple angled or multi-face features that can be machined effectively from several fixed tool orientations.

When is simultaneous 5-axis machining useful?

Simultaneous 5-axis machining can be useful for complex freeform surfaces, continuously changing tool orientations, difficult tool-access conditions and geometries where indexed orientations cannot provide the required cutting access.

Can multi-axis machining improve hole position consistency?

It can reduce the need to physically reposition the component and can therefore simplify the relationship between features machined from different orientations. Actual hole position still depends on the complete machining and inspection process.

Is a 5-axis CNC machine necessary for every precision component?

No. Many precision components can be efficiently produced using 3-axis machining or indexed 3+2 machining. Machine selection should be based on geometry, tolerance, accessibility, production volume, tooling and inspection requirements.
